ConvNeXt Models for Image Classification

This page documents the ConvNeXt image classification model pool in FusionBench. It wraps Hugging Face Transformers ConvNeXt models with convenient loading, processor management, dataset-aware head adaptation, and save utilities.

Implementation: ConvNextForImageClassificationPool

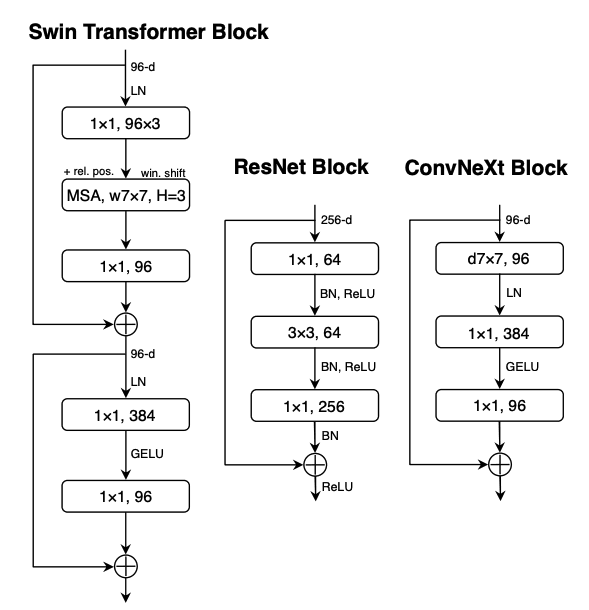

alt text

Quick start

Minimal Python usage with a single pretrained ConvNeXt model (e.g., base-224):

from fusion_bench.modelpool import ConvNextForImageClassificationPool

pool = ConvNextForImageClassificationPool(
        models={
                "_pretrained_": {
                        "config_path": "facebook/convnext-base-224",
                        "pretrained": True,
                        # set to a known dataset key (e.g., "cifar10") to resize classifier
                        # and populate id2label/label2id mappings
                        "dataset_name": None,
                }
        }
)

model = pool.load_model("_pretrained_")
processor = pool.load_processor()  # AutoImageProcessor

Low-level construction is available via helpers:

Ready-to-use config

Use the provided Hydra config to set up a pretrained ConvNeXt-base model:

config/modelpool/ConvNextForImageClassification/convnext-base-224.yaml
_target_: fusion_bench.modelpool.ConvNextForImageClassificationPool
_recursive_: False
models:
  _pretrained_:
    config_path: facebook/convnext-base-224
    pretrained: true
    dataset_name: null
train_datasets: null
val_datasets: null
test_datasets: null

Tip: set dataset_name to a supported dataset key (e.g., cifar10, svhn, gtsrb, …) to auto-resize the classifier and label mappings.

The 8-Task Benchmark

This pool includes a preset configuration for an 8-task image classification benchmark. The tasks are: SUN397, Stanford Cars, RESISC45, EuroSAT, SVHN, GTSRB, MNIST, and DTD.

config/modelpool/ConvNextForImageClassification/convnext-base-224_8-tasks.yaml
_target_: fusion_bench.modelpool.ConvNextForImageClassificationPool
_recursive_: False
models:
  _pretrained_: facebook/convnext-base-224
  sun397: tanganke/convnext-base-224_sun397_sgd_batch-size-64_lr-0.01_steps-4000
  stanford-cars: tanganke/convnext-base-224_stanford-cars_sgd_batch-size-64_lr-0.01_steps-4000
  resisc45: tanganke/convnext-base-224_resisc45_sgd_batch-size-64_lr-0.01_steps-4000
  eurosat: tanganke/convnext-base-224_eurosat_sgd_batch-size-64_lr-0.01_steps-4000
  svhn: tanganke/convnext-base-224_svhn_sgd_batch-size-64_lr-0.01_steps-4000
  gtsrb: tanganke/convnext-base-224_gtsrb_sgd_batch-size-64_lr-0.01_steps-4000
  mnist: tanganke/convnext-base-224_mnist_sgd_batch-size-64_lr-0.01_steps-4000
  dtd: tanganke/convnext-base-224_dtd_sgd_batch-size-64_lr-0.01_steps-4000
train_datasets: null
val_datasets: null
test_datasets: null

These models are fine-tuned from facebook/convnext-base-224.

When merging these models (e.g., using simple_average), we typically want to fuse the shared backbone while potentially keeping task-specific heads separate or handling them specially. The ConvNeXt implementation sets:

model._fusion_bench_target_modules = ["convnext"]

This attribute informs partial fusion algorithms to target the convnext backbone module. For standard parameter merging, this ensures we focus on the shared feature extractor.

examples/simple_average/convnext-base-224.py
"""
Example of merging ConvNeXt models using simple averaging.
"""

import lightning as L

from fusion_bench.method import SimpleAverageAlgorithm
from fusion_bench.modelpool import ConvNextForImageClassificationPool, BaseModelPool
from fusion_bench.models.wrappers.switch import SwitchModule, set_active_option
from fusion_bench.taskpool.image_classification import ImageClassificationTaskPool
from fusion_bench.utils import initialize_hydra_config, instantiate

fabric = L.Fabric(accelerator="auto", devices=1)
fabric.launch()

config = initialize_hydra_config(
    config_name="fabric_model_fusion",
    overrides=[
        "method=simple_average",
        "modelpool=ConvNextForImageClassification/convnext-base-224_8-tasks",
        "taskpool=ImageClassificationTaskPool/convnext-base-224_8-tasks.yaml",
    ],
)

algorithm: SimpleAverageAlgorithm = instantiate(config.method)
modelpool: ConvNextForImageClassificationPool = instantiate(config.modelpool)
taskpool: ImageClassificationTaskPool = instantiate(config.taskpool)
taskpool.fabric = fabric

models = {
    model_name: modelpool.load_model(model_name) for model_name in modelpool.model_names
}

# Wrap classification heads in a SwitchModule
heads = {model_name: m.classifier for model_name, m in models.items()}
head = SwitchModule(heads)

merged_model = algorithm.run(modelpool=BaseModelPool(models))
merged_model.classifier = head
report = taskpool.evaluate(merged_model)
print(report)

Implementation Details
