fusion_bench: The Command Line Interface for FusionBench

fusion_bench is the command line interface for running model fusion benchmarks in the FusionBench project. It provides a flexible way to configure and execute various fusion algorithms on different model pools and evaluate them across multiple tasks.

Details and Options

fusion_bench takes a configuration file as input, which specifies the models, fusion method to be used, and the datasets to be evaluated. running fusion_bench is equivalent to running python fusion_bench/scripts/cli.py.

fusion_bench [--config-path CONFIG_PATH] [--config-name CONFIG_NAME] \
    OPTION_1=VALUE_1 OPTION_2=VALUE_2 ...

# or equivalently
python fusion_bench/scripts/cli.py [--config-path CONFIG_PATH] [--config-name CONFIG_NAME] \
    OPTION_1=VALUE_1 OPTION_2=VALUE_2 ...

fusion_bench has the following options, method, modelpool, and taskpool are the most important ones among these options:

Hydra options

  • --help, -h: Application's help. Print help message and exit.
fusion_bench --help
  • --hydra-help: Hydra's help.
  • --version: Show Hydra's version and exit.
  • --cfg, -c: Show config instead of running [job|hydra|all]. This is useful for debugging the configuration. However, this just prints plain text configuration without color highlighting or formatting.
fusion_bench --cfg

Or equivalently with the following options:

# this will print the configuration using rich library, which provides syntax highlighting and better formatting
fusion_bench print_config=true dry_run=true
  • --resolve: Used in conjunction with --cfg, resolve config interpolations before printing.
  • --package, -p: Config package to show. For example, when you only want to see the configuration for method.
fusion_bench --cfg job -p method
  • --info, -i: Print Hydra information [all|config|defaults|defaults-tree|plugins|searchpath]
  • --config-path, -cp: Overrides the config_path specified in hydra.main(). The config_path is absolute or relative to the Python file declaring @hydra.main(). By default, the config path is the config or fusion_bench_config directory in the project root.
  • --config-name, -cn: Overrides the config_name specified in hydra.main(). By default, the config name is example_config so config/example_config.yaml will be loaded. You can also specify another config name, for example:
# this will load the config from `config/llama_weighted_average.yaml`
fusion_bench --config-name llama_weighted_average.yaml
  • --config-dir, -cd: Adds an additional config dir to the config search path
  • --multirun, -m: Run multiple jobs with the configured launcher and sweeper. For more information, see Hydra documentation.
  • --experimental-rerun: Rerun a job from a previous config pickle

Shell Completion

This is useful for tab completion in the shell. You can install shell completion for Bash, Fish, and Zsh.

alt text

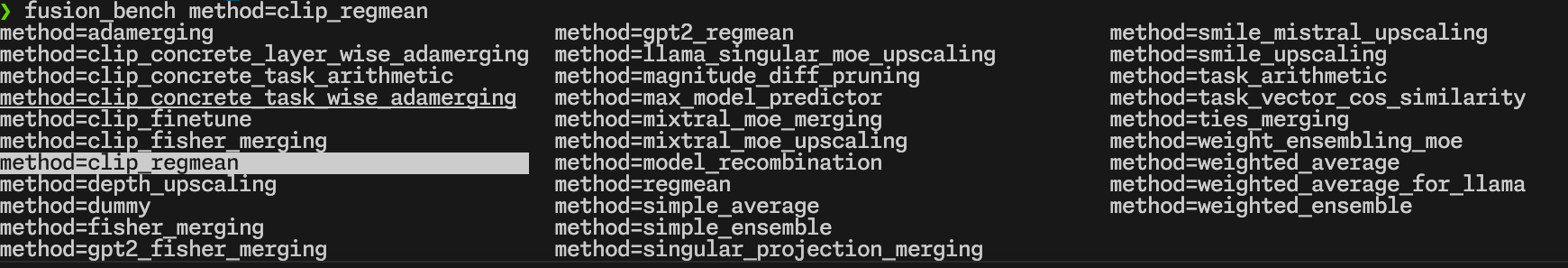

Screenshot of tab completion in the shell.
  • --shell-completion, -sc: Install or Uninstall shell completion:

  • Bash - Install:

    eval "$(fusion_bench -sc install=bash)"

  • Bash - Uninstall:

    eval "$(fusion_bench -sc uninstall=bash)"

  • Fish - Install:

    fusion_bench -sc install=fish | source

  • Fish - Uninstall:

    fusion_bench -sc uninstall=fish | source

  • Zsh - Install: Zsh is compatible with the Bash shell completion, see the documentation for details.

    eval "$(fusion_bench -sc install=bash)"

  • Zsh - Uninstall:

    eval "$(fusion_bench -sc uninstall=bash)"

Application Options

  • report_save_path: The path to save the report. If not specified or is false, the report will not be saved. The report will be saved as a JSON file. Default is false. For example, to save the report to outputs/report.json:
fusion_bench report_save_path=outputs/report.json
  • print_config: Whether to print the configuration to the console. If not specified or is false, the configuration will not be printed. Default is true. For example, to print the configuration:
fusion_bench print_config=true
  • dry_run: Perform a dry run. This will only validate the configuration without running the actual code. Default is false. For example, to perform a dry run and print the configuration:
fusion_bench dry_run=true print_config=true
  • merged_model_save_path: The path to save the merged model. If specified, the merged model will be saved to this path by calling modelpool.save_model. For example, to save the merged model to outputs/merged_model.pt:
fusion_bench merged_model_save_path=outputs/merged_model.pt

Note that the behavior of modelpool.save_model depends on the implementation of the model pool. Take AutoModelForCausalLMPool as an example, it will save the model to the specified path as a dirctory containing the model configuration and safetensor files, i.e., calling model.save_pretrained(merged_model_save_path).

??? example "Example of `modelpool.save_model`"

    `ModelPool` is the base class for model pools. The `save_model` method is defined in the `ModelPool` class and can be overridden in the derived classes. For example, `AutoModelForCausalLMPool` overrides the `save_model` method to save the model using the `save_pretrained` method of the model. The following is an example of the `save_model` method in the `ModelPool` class and the `AutoModelForCausalLMPool` class.

    By passing `merged_model_save_path` to the `fusion_bench` command, only the model and the save path will be passed to the `modelpool.save_model` method. For example, although the `AutoModelForCausalLMPool` class has a `save_model` method that can take additional arguments, such as `push_to_hub` and `save_tokenizer`, these arguments will not be passed to the `save_model` method. If you want to pass additional arguments to the `save_model` method, you need to implement the logic in method class.

    ::: fusion_bench.modelpool.CausalLMPool.save_model
        options:
          show_root_full_path: true
          show_root_toc_entry: false

method, modelpool and taskpool options

As mentioned earlier, method, modelpool, and taskpool are the most important options in fusion_bench. The basic usage is as follows:

fusion_bench method=<METHOD> modelpool=<MODELPOOL> taskpool=<TASKPOOL>

To override the default configuration, you can specify additional options as follows:

fusion_bench \
  method=<METHOD> \
    method.<OPTION_1>=<VALUE_1> \
      method.<OPTION_1>.<SUBOPTION_1>=<VALUE_1_1> \
      method.<OPTION_1>.<SUBOPTION_2>=<VALUE_1_2> \
    method.<OPTION_2>=<VALUE_2> \
  modelpool=<MODELPOOL> \
    ...
  taskpool=<TASKPOOL> \
    ...

Paremeter Overrides: In the above example, <METHOD>, <MODELPOOL>, and <TASKPOOL> are the names of the method, model pool, and task pool, respectively. <OPTION_1>, <VALUE_1>, <SUBOPTION_1>, <VALUE_1_1>, etc., are the options and values for the method. In particular, the options for the method are prefixed with method., e.g., method.<OPTION_1>. And the suboptions are prefixed with method.<OPTION_1>., e.g., method.<OPTION_1>.<SUBOPTION_1>.

Basic Examples

merge two CLIP models using task arithmetic:

fusion_bench method=task_arithmetic \
  modelpool=clip-vit-base-patch32_svhn_and_mnist \
  taskpool=clip-vit-base-patch32_svhn_and_mnist

The overall configuration is as follows:

1
2
3
4
5
6
7
8
9
method: # (1)!
  ...
modelpool: # (2)!
  ...
taskpool: # (3)!
  ...
fast_dev_run: false
print_config: true
report_save_path: false
  1. Configuration for method, fusion_bench.method.load_algorithm_from_config checks the 'name' attribute of the configuration and returns an instance of the corresponding algorithm.
  2. Configuration for model pool, fusion_bench.modelpool.load_modelpool_from_config checks the 'type' attribute of the configuration and returns an instance of the corresponding model pool.
  3. Configuration for task pool, fusion_bench.taskpool.load_taskpool_from_config checks the 'type' attribute of the configuration and returns an instance of the corresponding task pool.

merge multiple CLIP models using simple averaging:

fusion_bench method=simple_average modelpool=clip-vit-base-patch32_TA8.yaml taskpool=dummy

Running in Offline Mode

In the offline mode, the model pool will not download the models from the internet. Instead, it will use the models that are already downloaded to the local cache.

To run fusion_bench in offline mode, you can run the following command before running fusion_bench:

source offline_mode.sh

Or set the environment variable according to the content of offline_mode.sh.

Debugging and Troubleshooting

During algorithm development, you may want to debug the code or inspect the configuration. Here are some tips for debugging and troubleshooting.

Debugging in VSCode

Visual Studio Code (VSCode) is a popular code editor that supports debugging Python code with Python extension. To debug the code using VSCode, you can use the following configuration in your .vscode/launch.json:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
{
    "version": "0.2.0",
    "configurations": [
        {
            "name": "FusionBench with Arguments",
            "type": "debugpy",
            "request": "launch",
            "module": "fusion_bench.scripts.cli", // (1)!
            "args": "${command:pickArgs}", // (2)!
            "console": "integratedTerminal",
            "justMyCode": true
        }
    ]
}
  1. The module field specifies the module to run. In this case, it is fusion_bench.scripts.cli. You can also specify the path to the script directly with program filed, e.g., "program": ${workspaceFolder}/fusion_bench/scripts/cli.py.
  2. The args field specifies the arguments to pass to the script. You can use ${command:pickArgs} to pick the arguments interactively when you run the debugger. Or you can specify the arguments directly, e.g., "args": ["--config-name", "example_config"].

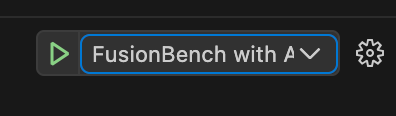

Once you have the configuration in your launch.json, you can start debugging by selecting the FusionBench with Arguments configuration and pressing F5.

alt text

Debugging in PyCharm

Debugging in PyCharm with arguments needs to be configured in the Run/Debug Configurations.

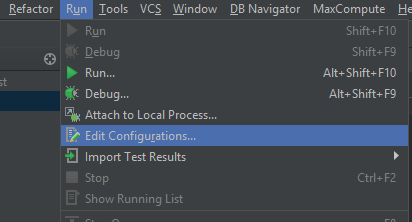

  1. Click on the Run menu click Edit Configurations... alt text
  2. Select + in top right corner and select Python
    alt text

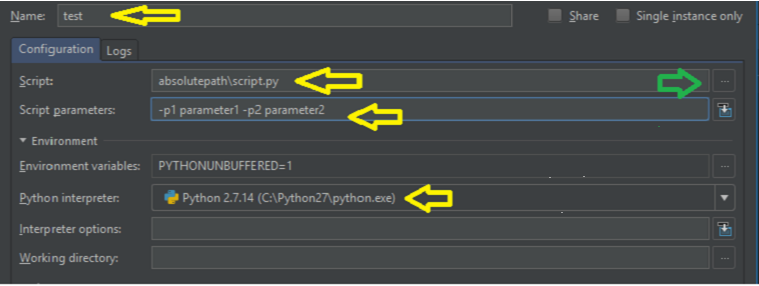

  3. Provide the name, absolute path of the script (fusion_bench/scripts/cli.py) or select the script by clicking three dots (green arrow), script parameters, and python interpreter.
    alt text
